What we have !
PixaarNeXT have all range of Desktop Computers with high quality products and services. • Intel Pentium • Intel I3 • Intel I5 • Intel I7 • Intel I9 and AMD
Know more about

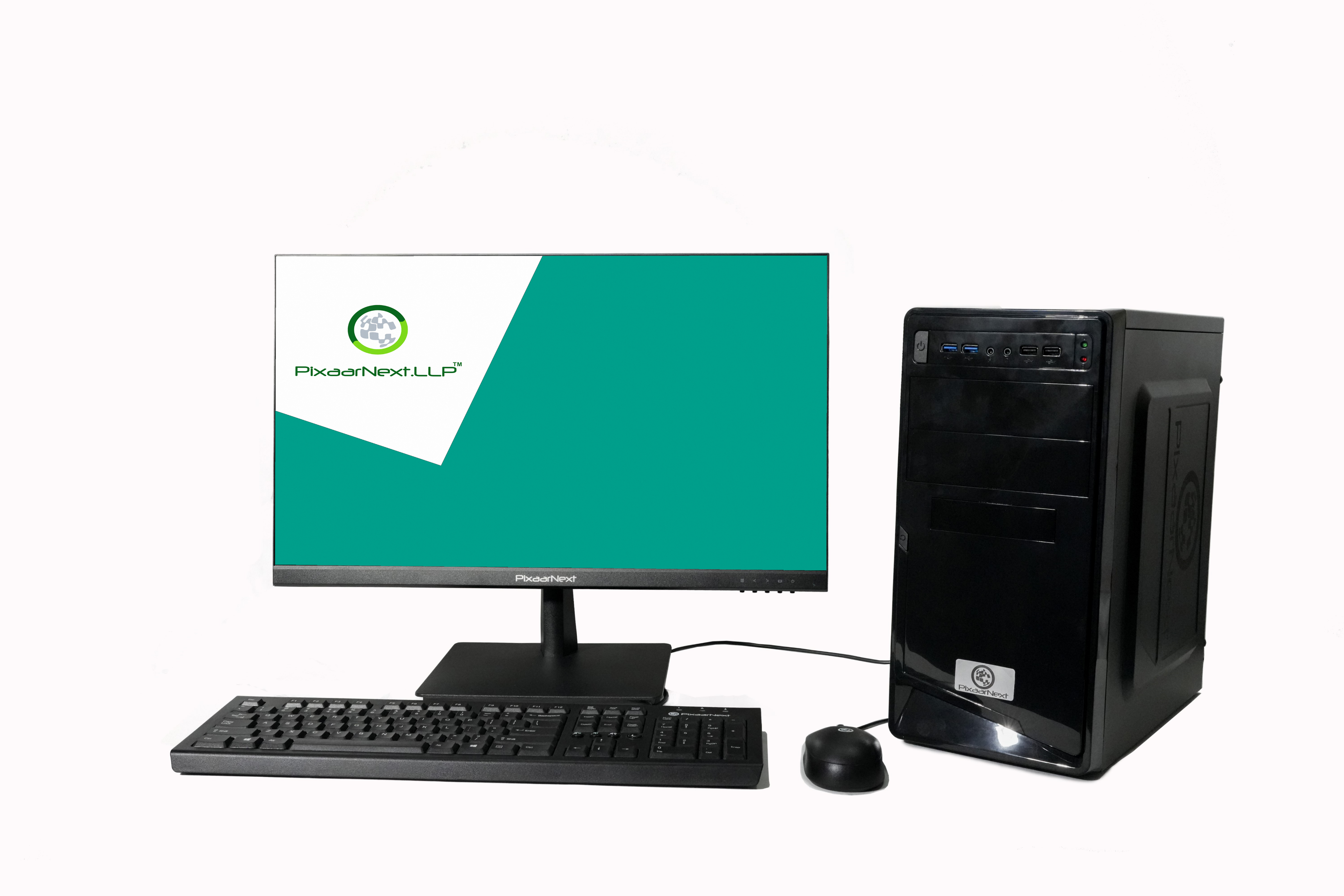

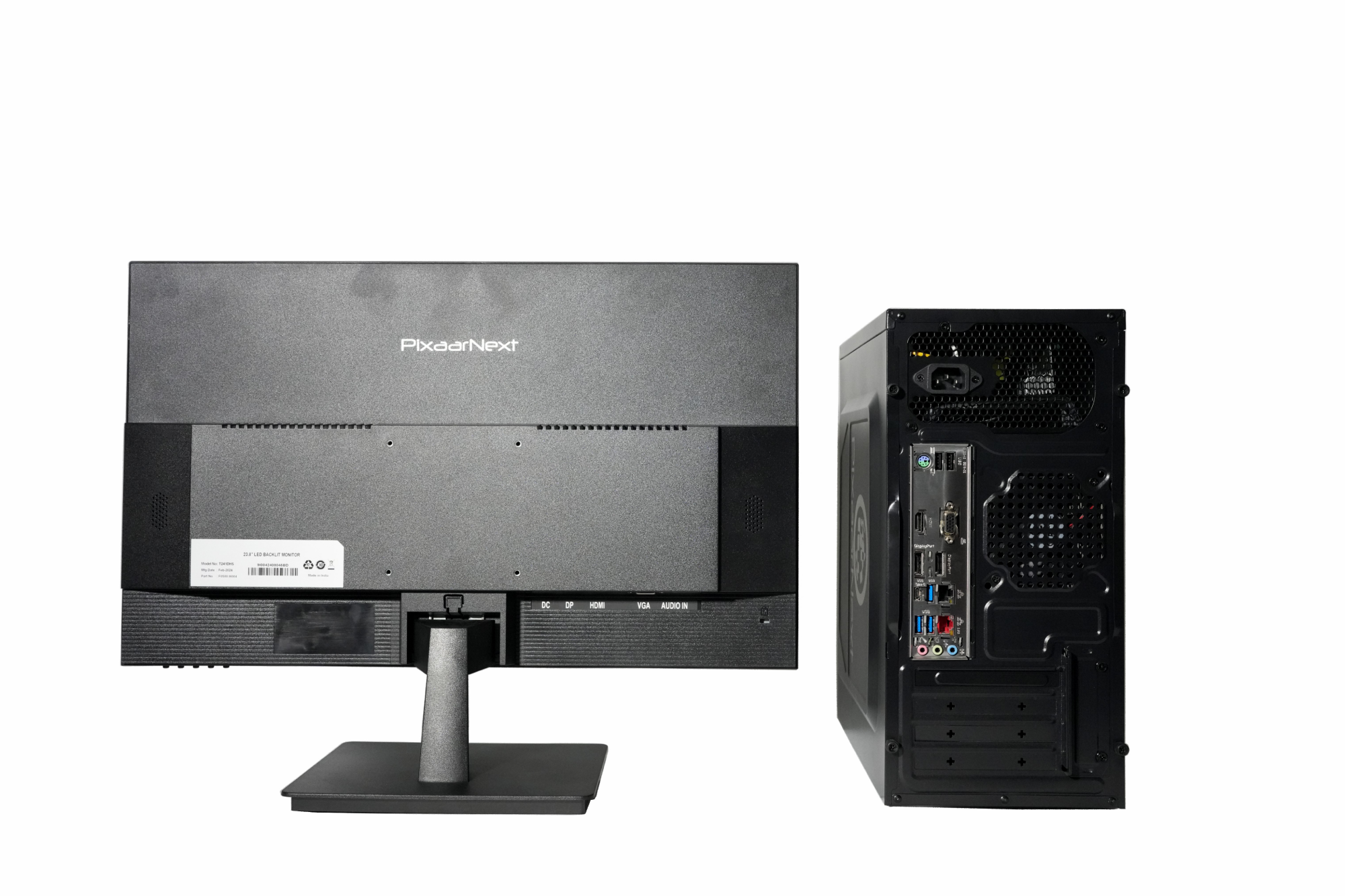

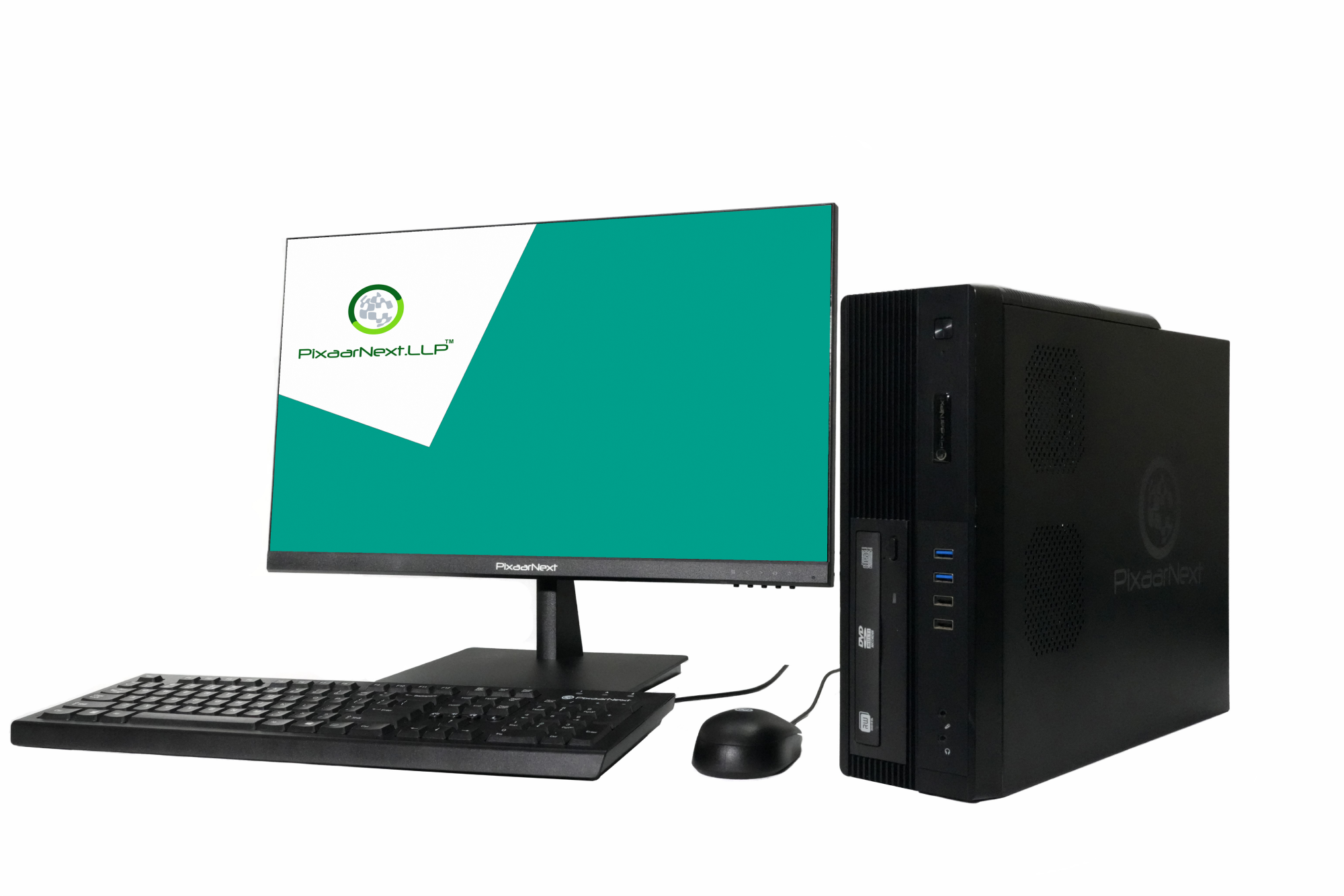

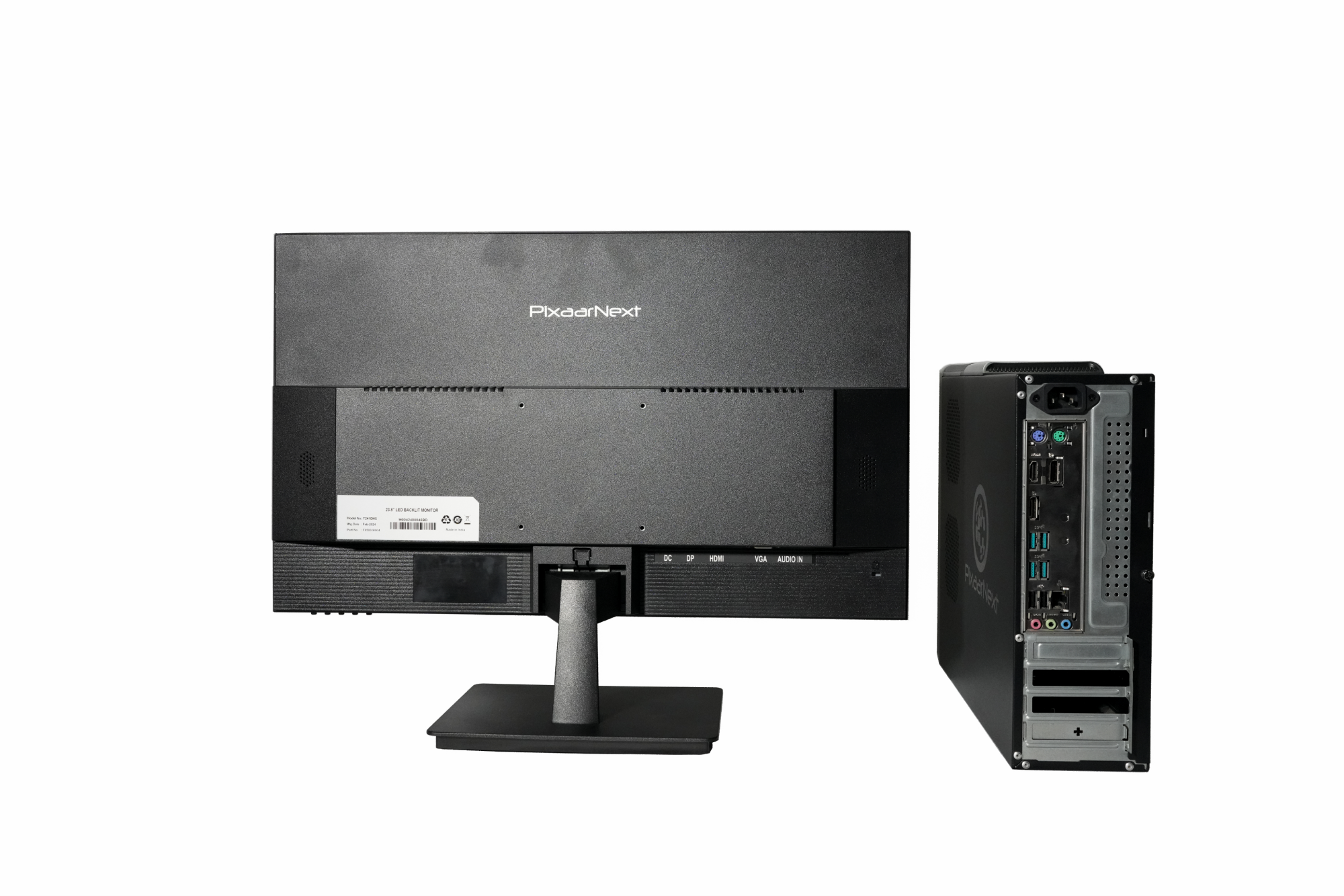

Zero 700 series Desktop PC
| Parameter | Intel Based | AMD Based |
|---|---|---|
| Operating Systems | Windows 10/11 Home, Windows 10/11 Professional, Ubuntu, RHEL, DOS | Windows 10/11 Home, Windows 10/11 Professional, Ubuntu, RHEL, DOS |
| Processor Family | Intel Core 12th / 13th / 14th Generation - Ultra | "Ryzen 7 5000 Series, Ryzen 7 7000 Series" |
| Processor Support | Intel Core i7 12700, Intel Core i7 12700k, Intel Core i7 13700, Intel Core i7 13700K, Intel Core i7 14700, Intel Core i7 14700k, Ultra 265, Ultra 265k | "AMD Ryzen 7 5700G, AMD Ryzen 7 5800X" |
| Chipset | Intel H Series Intel B Series Intel Q series Intel Z series | AMD B 500 Series |
| Form Factor | Small Form Factor / Tower | Small Form Factor / Tower |
| Maximum Memory Support | 64 / 128 GB GB DDR4-2666/ 3200 SDRAM; 64 / 128 / 192 GB DDR5-4000/4800/5200/5600 SDRAM; Transfer rates up to 3200 MT/s.; Transfer rates up to 5600 MT/s. |
64 / 128 GB GB DDR4-2666/ 3200 SDRAM; 64 / 128 / 192 GB DDR5-4000/4800/5200/5600 SDRAM; Transfer rates up to 3200 MT/s.; Transfer rates up to 5600 MT/s. |
| Memory DIMM | H series with 2 DIMM B / Q with 2 / 4 DIMM Support |
B 500 with 4 DIMM Support |
| Internal Storage | 2 Bay with 1TB upto 4TB SATA HDD Support 128 GB up to 2 TB PCIe® NVMe™ M.2 SSD |
2 Bay with 1TB upto 4TB SATA HDD Support 128 GB up to 2 TB PCIe® NVMe™ M.2 SSD |
| Optical Drive | 5.25" ODD (Optional) | 5.25" ODD (Optional) |
| Available Graphics | Integrated:Intel® UHD Graphics 730; Intel® UHD Graphics 770 Dedicate: Nvidia 2 GB to 8 GB GPU Memory |
"Integrated:AMD Radeon™ Graphics Dedicate: Nvidia 2 GB to 8 GB GPU Memory" |
| Audio | Realtek ALC3252 codec, universal audio jack | Realtek ALC3252 codec, universal audio jack |
| Wireless Technologies | (Optional) Intel® Wi-Fi 1800 and Bluetooth® 5.2 wireless PCI cardIntel Wi-Fi 6 AX200 and Bluetooth® 5.2 wireless PCI card, |
(Optional) Intel® Wi-Fi 1800 and Bluetooth® 5.2 wireless PCI cardIntel Wi-Fi 6 AX200 and Bluetooth® 5.2 wireless PCI card, |
| Expansion Slot | "H Series 1 M.2 2280; 1 PCIe 3 x1; 1 PCIe 4 x16 B Series 2 M.2 2280; 2 PCIe 3 x1; 1 PCIe 4 x16 Q Series 2 M.2 2280; 1 PCIe 3 x1; 2 PCIe 4 x16 Z series 2 M.2 2280; 1 PCIe 3 x1; 3 PCIe 4 x 16" | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot, 2 x M.2 Socket 3 Connector |
| Ports and connectors | H / B Series Front: 1 headphone, 1 microphone; 2 USB 3.0 Type-A, 2 USB 2.0 Rear:1 audio-out; 1 RJ-45; 1 HDMI 1.4, 1 VGA, 2 USB 3.1 Type-A , 2 USB 2.0, 1 PS/2 keyboard/mouse port B / Q Series, 4 x SATA 6Gb/s connectors (Internal) Front: 1 headphone, 1 microphone; 2 USB 3.0 Type-A, 2 USB 2.0 Rear:1 audio-out; 1 RJ-45; 1 HDMI 1.4, 2/4 USB 3.1 Type-A ,1 VGA, 1 Display Port, 1 Type-C (Optional), 1 PS/2 keyboard/mouse port, 4 x SATA 6Gb/s connectors (Internal) |
"Front: 1 headphone, 1 microphone; 2 USB 3.0 Type-A, 2 USB 2.0 Rear:1 audio-out; 1 RJ-45; 1 HDMI 1.4, 1 Display Port , 4 USB 3.1 Type-A , 4 USB 2.0, 1 PS/2 keyboard/mouse port, 4 x SATA 6Gb/s connectors (Internal)" |

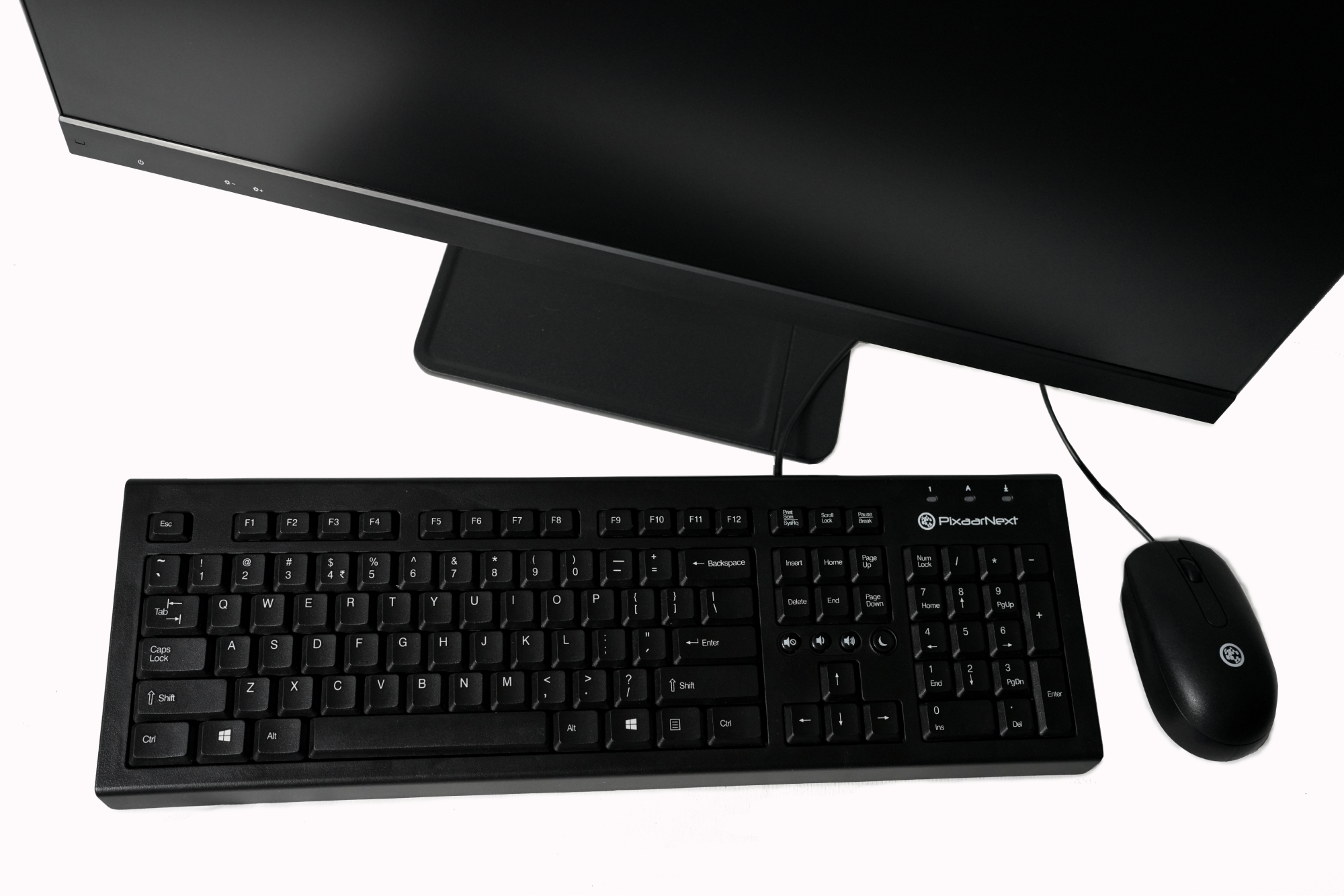

| Input device | USB Wired Standard Keyboard, USB 1000 DPI Optical Mouse |
USB Wired Standard Keyboard, USB 1000 DPI Optical Mouse |
| Communications | LAN Integrated Intel® I219LM GbE 10/100/1000 GBPS | LAN Integrated 10/100/1000 GBPS LAN Port |
| Drive Bays | SFF: 1 3.5"" HDD, 2 2.5"" SDD Tower: 3 3.5"" HDD, 2 2.5"" SSD |
SFF: 1 3.5"" HDD, 2 2.5"" SDD Tower: 3 3.5"" HDD, 2 2.5"" SSD |
| Environmental | Operating temperature: 10 to 405°C; Operating humidity: 10 to 90% RH |
Operating temperature: 10 to 405°C; Operating humidity: 10 to 90% RH |
| Security management | "Trusted Platform Module TPM 2.0 Security Header Kensington Lock slot" |
"Trusted Platform Module TPM 2.0 Security Header Kensington Lock slot" |
| Power | 240/250 W internal power supply, up to 80-85 % efficiency | 240/250 W internal power supply, up to 80-85 % efficiency |
| Certification/compliance | ROHS, FCC, BEE, EPR , Windows H/W certificate, ISO 27001, ISO 14001, ISO 9001,ISO 20000-1, ISO-50001 |
ROHS, FCC, BEE, EPR , Windows H/W certificate, ISO 27001, ISO 14001, ISO 9001,ISO 20000-1, ISO-50001 |
| Dimensions | "Tower: 350 x 185 x 425mm SFF: 360 x 100x 295mm" |
"Tower: 350 x 185 x 425mm SFF: 360 x 100x 295mm" |
| Display | 18.5,19.5,Inch , 768*1366, 900*1600 resolution with standard/Highe Adjustabel Foot 21.5,23.8,27 Inch , FHD 1920*1080 resolution with standard/Highe Adjustabel Foot 23.8 inch, FHD 1920*1080 resolution with integrated Web Camera, 2 Speaker |
18.5,19.5,Inch , 768*1366, 900*1600 resolution with standard/Highe Adjustabel Foot 21.5,23.8,27 Inch , FHD 1920*1080 resolution with standard/Highe Adjustabel Foot 23.8 inch, FHD 1920*1080 resolution with integrated Web Camera, 2 Speaker |
